1、特点The characteristics of

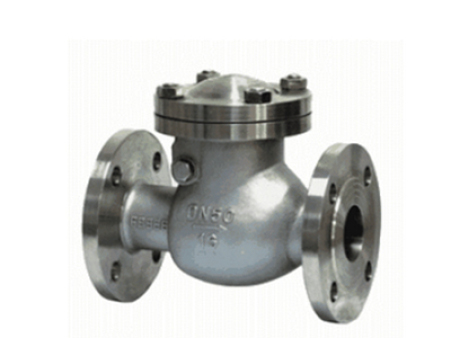

旋启式止回阀是控制管道内介质单向流向的阀门，用来防止管路中的介质倒流。适用各种管路的各种压力、温度和介质下控制接通或截断管路介质的启闭装置；依靠阀瓣自重和流体压差实现自动阻止流体倒流。适用介质为：水、油品、蒸汽等.Swing check valve, one-way flow of media is to control the pipe valve is used to prevent the backflow medium pipeline. Apply to all sorts of all sorts of pipeline pressure, temperature and medium under control through or truncation pipeline medium lifting device; Rely on the disc self-respect and fluid pressure differential automatically prevent fluid backflow. Applicable medium: water, oil, steam, etc.

2、主要参数The main parameters

型号model： PH44H/W		工作压力（MPa）：1.6~10.0		适用温度（℃）：≤200
适用介质Applicable medium			水、蒸汽、油品 Water, steam, oil		弱腐蚀性介质 Weak corrosive medium
材料material	阀体、阀盖 Body and bonnet		碳素钢铸钢 Carbon steel casting steel		铬镍系不锈钢Chromium nickel stainless steel
	阀瓣 The disc		碳素钢铸钢 Carbon steel casting steell		铬镍系不锈钢 Chromium nickelstainless steel
	密封圈Sealing ring		碳素钢铸钢或不锈钢Carbon steel casting and Stainless steel

3、主要连接尺寸The size and weight (单位mm)
PH44H旋启式止回阀

口径	PN1.6/2.5MPa			PN4.0MPa			PN6.4/10.0MPa
	L		H	L		H	L	H
	系列1	系列2	H	系列1	系列2	H	L	H
DN40	200	200	130	200	200	130	260	160
DN50	230	230	135	230	230	135	300	170
DN65	290	290	145	290	290	145	340	180
DN80	310	310	175	310	310	175	380	245
DN100	350	350	200	350	350	200	430	290
DN125	400	400	255	400	400	255	500	320
DN150	480	480	320	480	480	320	550	360
DN200	495	550	380	533	550	380	650	430
DN250	622	650	440	622	650	440	775	505
DN300	698	750	480	711	750	520	900	555
DN350	787	850	530	838	850	540	1025	595
DN400	864	950	560	864	950	590	1150	680
DN450	978	1050	620	978	1050	650	1275	780
DN500	978	1150	655	978	1150	720	1400	970
